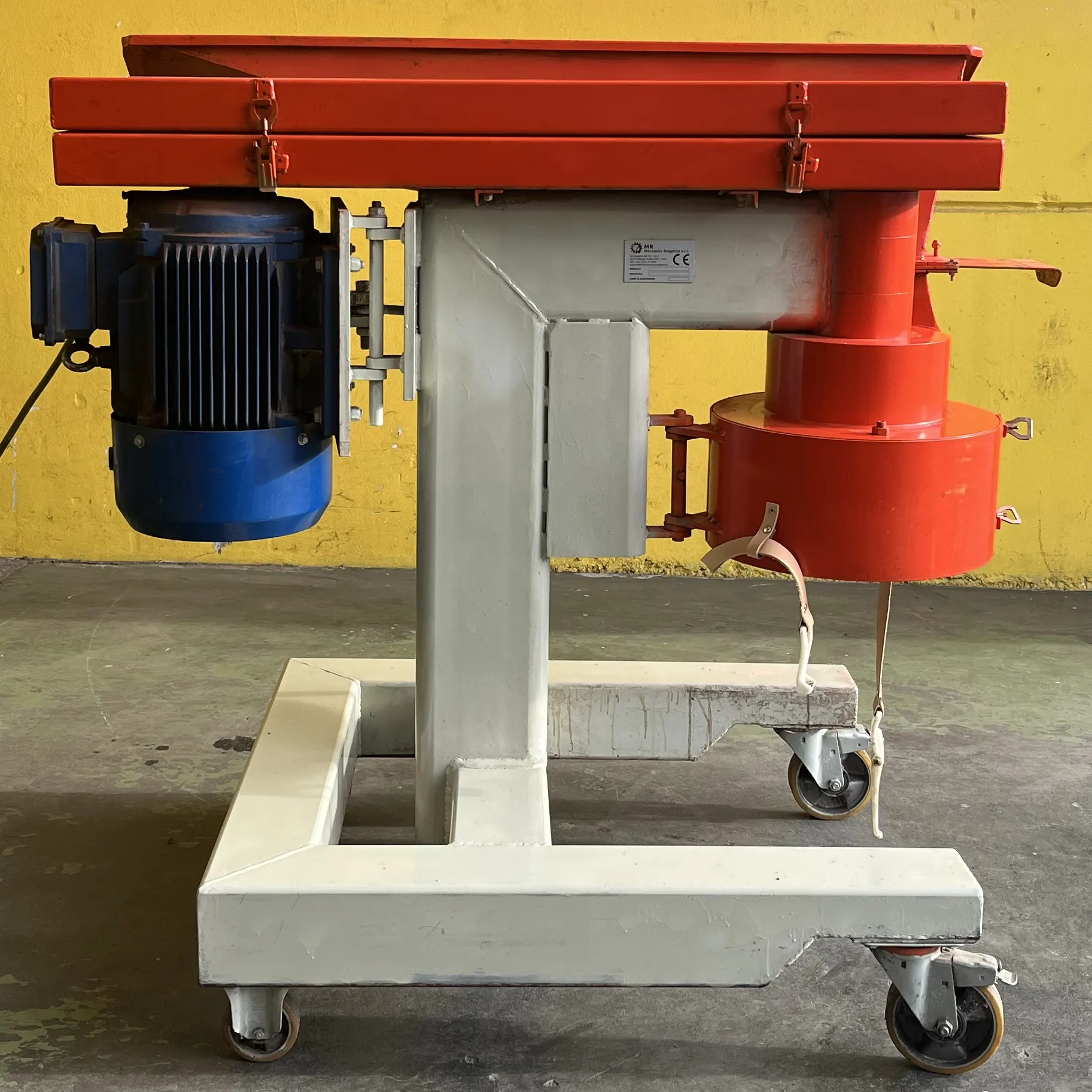

VERTICAL TURBO MILL M12
PATENT N. 102024000010324 – PATENT N. 102018000009723
Characteristics
Compact dimensions vertical mill for grinding organic and inorganic materials in small and medium size contexts in the agricultural and recycling materials management sectors. It has cylindrical grids that can be easily changed to obtain different grinding grain sizes in reduced times. Ergonomic mill that can be managed by a single operator thanks to its mobile base.
| Overall dimensions |
Length 1600 mm, width 970 mm, height 1620 mm. |
| Construction material |
Carbon Steel / Stainless Steel AISI 360 – 316. |
| Grinding diameters |
From ø 0.8 mm to ø 10 mm. |
| Production | 500 kg./h |
| Feeding motor |
Motor 7.5 kW – 2800 rpm, 3-phase power supply 380V-50Hz. |
Examples of tested materials: wheat, peas, flax, soya, vine tracks, dried fruit/vegetable waste.
Loading hopper equipped with damper to adjust the mill loading flow
Without special tools, a single operator can clean and change the grid and the hammer rotor assembly in a few simple steps.
